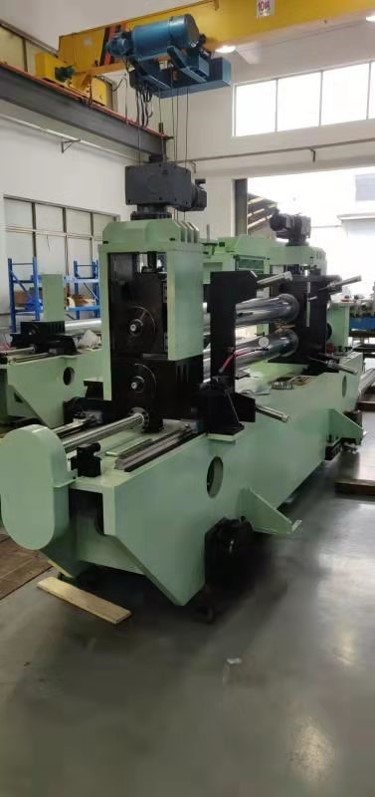

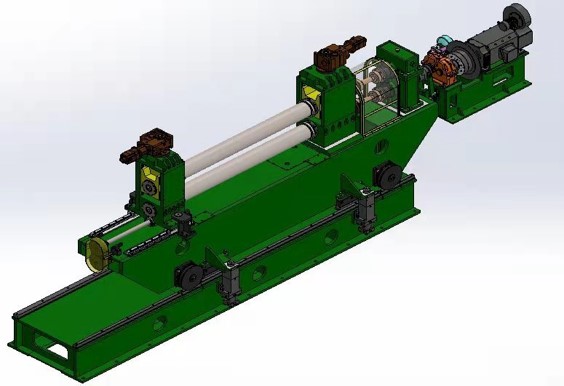

pSlitting machine

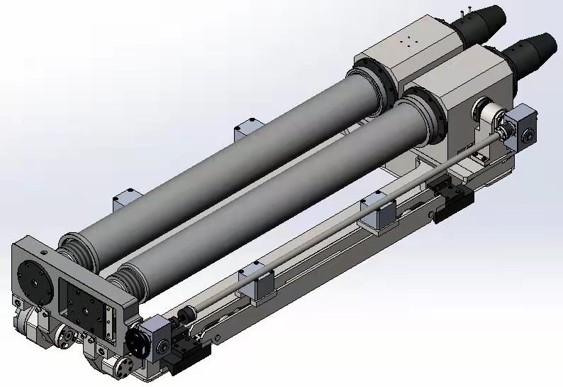

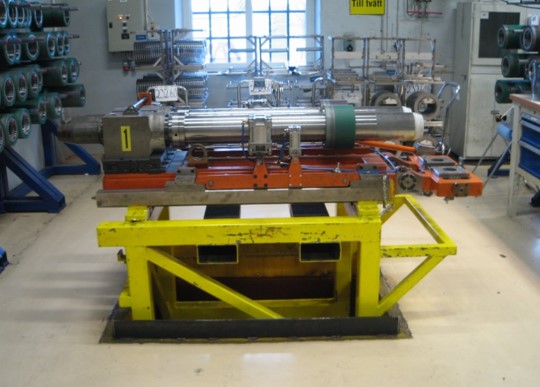

?Complete Slitting Cassette
p剪切機
?剪切刀頭
超過15000小時的免維護周期
軸徑及剪切寬度可按客戶需求定制
No maintenance for more than 15000 hours production.
Shaft diameter and slitting width can be designed according customer requirement.
|
性能保證: 成品錯層公差(BVF): 成品塔形公差(PA): 跑偏 (TB-B): 毛刺: 側彎: 剪切寬度公差: |
≤0.5mm (底層5圈，料頭除外) ≤0.0025X 成品外徑 mm (底層5圈，料頭除外) ≤1.5mm ≤0.015mm(軋制態); ≤0.03mm(退火態) ≤0.22mm/m 目標值±0.05mm |
|
Slitting thickness range: Min slitting width: Tolerance for the shaft diameter 150: Tolerance for the shaft axially: Tolerance for the shaft radially: Max operating speed: |
0.04-0.4mm 5mm -0.015-0.030 0.0-0.007 0.0-0.05 1500m/min |

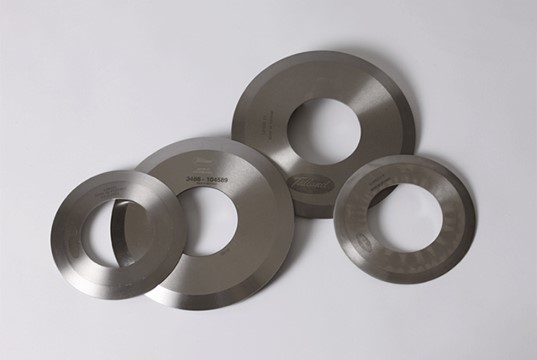

Multiple type of slitting knife for slitter

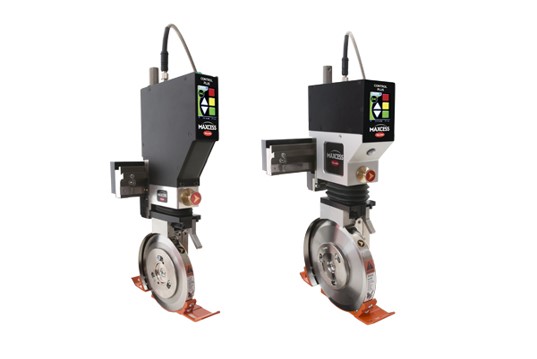

Driven or non-driven knife holder
各類剪切機用分切碟刀
主動和被動高精度刀座
